Spinal cord ischemia (SCI) is a potentially devastating complication associated with thoracoabdominal aortic aneurysm (TAAA) repair and remains relevant in the endovascular era. Recent studies have demonstrated mortality between 10% and 20%, although up to 60% can remain wheelchair-bound, resulting in higher long-term mortality.1-4 Poor prognostic factors for recovery include severity of initial insult, lack of improvement in the first 24 hours of symptoms, advanced age, and female sex.2,4 Although endovascular approaches mitigate many of the hemodynamic stresses related to open repair, the risk of SCI persists with both open and endovascular approaches and increases with the extent of aortic coverage. SCI rates for Crawford extent II TAAA repair range from 2% to 22% and non-extent II rates (extent I, III, IV) are much lower, ranging from 2.6% to 8%.5-8 This pathology remains particularly relevant given recent advances and successes in complex endovascular repair of thoracoabdominal aortic disease.


The main drivers of acute SCI are malperfusion resulting from disruption of blood flow to the anterior spinal artery, intercostal arteries, and other collateral networks (eg, vertebral artery, hypogastric artery). Blood flow to the spinal cord is also modulated by perfusion pressure—the difference between mean arterial pressure (MAP) and intraspinal canal pressure—and therefore systemic hypotension or increased intraspinal canal pressure can jeopardize perfusion to the cord. Distal embolization during interventions also serves as an important etiology.9

Numerous preoperative techniques have been developed to mitigate the risk of SCI with the main goal of maintaining adequate spinal cord perfusion pressure and adequate collateral pathways, with specifics depending on the particular intervention. For example, patients undergoing thoracic endovascular aortic repair (TEVAR) who require coverage of their left subclavian artery (LSA) often undergo pre-TEVAR left carotid-subclavian bypass or transposition to ensure left vertebral artery patency. Certain patients may benefit more from this, including those with a dominant left vertebral artery or those with a prior EVAR. Some groups advocate for staged procedures beginning with TEVAR to allow for collateralization over time.10,11 Minimally invasive segmental artery coil embolization is another prophylactic technique that some groups have utilized.12-14 This procedure is based on the collateral network concept of spinal cord perfusion, which suggests that intentional endovascular segmental artery occlusion of intercostal branches can mobilize nearby spinal arterial networks in anticipation of future aortic coverage approximately 2 to 8 weeks later, helping to prevent SCI.

In general, the approaches to mitigate the risk of SCI include avoidance of hypotension, maintenance of optimal oxygen delivery, as well as the selective addition of invasive adjuncts such as the use of a lumbar spinal drain.15,16 If there is concern for SCI, drainage of cerebrospinal fluid (CSF) can be initiated to reduce pressure in the subarachnoid space (usually to 8-12 mm Hg) and increase spinal cord perfusion pressure while concomitantly raising MAP with vasopressors. Numerous tools can be used to monitor intraoperative spinal cord perfusion, including somatosensory evoked potentials (SSEPs), motor evoked potentials, and less invasive techniques such as near-infrared spectroscopy.17,18


The use of prophylactic spinal drainage is commonly used in patients at high risk for perioperative SCI, including extensive aortic coverage (extent II/III repairs), history of prior open or endovascular aortic repair, bilateral vertebral artery disease, occlusion of hypogastric arteries, advanced age, patients presenting nonelectively, atrial fibrillation, and renal insufficiency.19,20 The potential complications associated with drain placement are not uncommon and can be significant, including spinal hematoma leading to paralysis, intracranial hemorrhage, and meningitis.21,22 Other less severe complications can also occur and include catheter fractures, local skin infections, mechanical fractures, and CSF leaks.23,24 Studies have quoted that significant complications occur between 1 and 20 and 1 in 50 patients.25 In addition, the rate of nonfunctioning drains is not insignificant, occurring in up to 20% of patients.21

Although many groups initially advocated for prophylactic drainage in all TEVARs, the paradigm seems to be shifting to selective and rescue placement. Most of the early impetus to support routine use of CSF drainage arose from the 2010 American College of Cardiology Foundation and American Heart Association guidelines.26 However, these guidelines were based mainly on three studies of open thoracic aortic surgeries and not on TEVAR or branched endovascular outcomes.27-29 Unfortunately, there has been no level I evidence to support routine CSF drainage with TEVAR or branched/fenestrated repairs or trials comparing the use of prophylactic spinal drains to “rescue drain” for patients who develop perioperative or delayed symptoms. Many groups now advocate for selective and rescue use of spinal drains, and these decisions are based on retrospective studies and large review studies, although many of the practice patterns developed vary greatly among institutions with regard to indications, timing, drain settings, drain duration, and blood pressure management.30-33 Differences in institutional resources, including the ability to provide rescue drain placement by experienced anesthesia staff at all hours and as specialized nursing to detect early signs of SCI, influence practice patterns with regard to prophylactic versus selective lumbar drain placement.

Our own institutional practice is to employ selective placement of spinal drains for high-risk patients (Figure 1). For normal-risk patients, we do not place prophylactic spinal drains and provide rescue drains in the appropriate clinical setting (Figure 2). If a patient requires coverage of their LSA, a preoperative left carotid-subclavian bypass or left subclavian transposition is performed. Most commonly, high-risk patients include those with coverage of the entire thoracic aorta and prior history of EVAR or open abdominal aortic aneurysm repair. Intraoperatively, SSEPs are used for continuous neurologic monitoring and a MAP goal is maintained at > 80 mm Hg after device deployment. Patients then spend 24 to 72 hours in our cardiovascular intensive care unit, where they undergo serial neurovascular checks and strict blood pressure control.

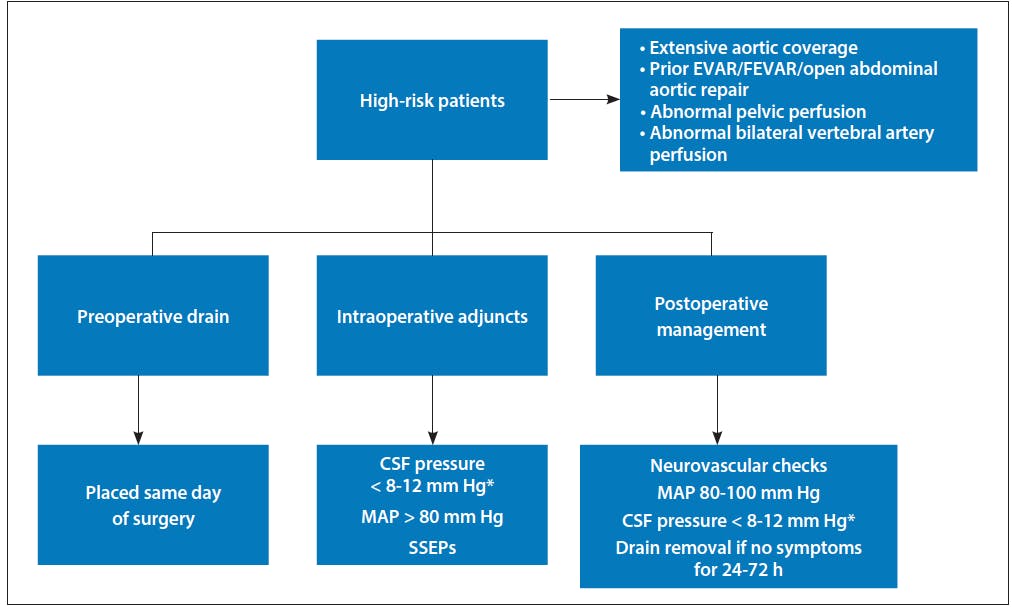

Figure 1. Our institutional protocol for spinal drain placement for high-risk patients. EVAR, endovascular aneurysm repair; FEVAR, fenestrated endovascular aneurysm repair. *Drain no more than 15-20 mL/hr.

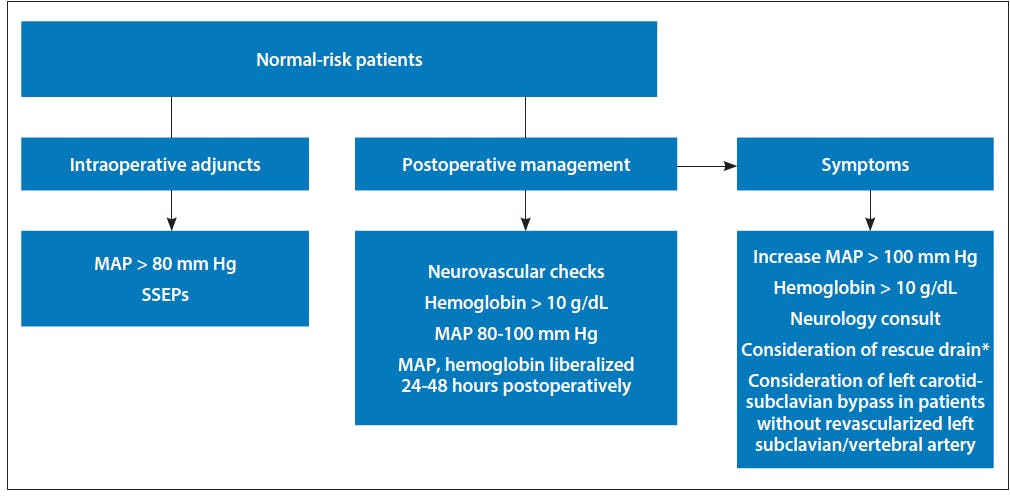

Figure 2. Our institutional protocol for spinal drain placement for normal-risk patients. *Drain no more than 15-20 mL/hr.

If symptoms of SCI present, patients quickly enter a permissive hypertension protocol to raise MAP > 100 mm Hg and undergo neurology consultation and evaluation for spinal drainage. The decision to place a drain should move forward rapidly if symptoms do not improve quickly with blood pressure augmentation, as some data suggest that even minor delays can result in worse outcomes.34 Drains usually remain in place for 24 to 72 hours after symptoms plateau with increasing drainage rate up to 15 to 20 mL/hr depending on symptom severity and improvement. The drains are monitored for bloody or pink drainage with a hemoglobin goal > 10 mg/dL. Patients remain flat while the drain is in place. If SCI symptoms do not resolve with measure to increase MAP and lumbar drain placement and the LSA has been covered due to the emergent nature of their TEVAR, urgent left carotid-subclavian bypass should be considered.


Methods to prevent SCI are a topic of continued debate, and most practices are based on expert opinion and experience rather than level I evidence. The ability to adhere to a selective or rescue drain placement protocol also relies on the availability of staffing 24/7 or anesthesia or other services capable of placing a drain. Currently, there is a rapidly evolving outlook with regard to prophylactic spinal drain placement in endovascular treatment of TAAAs, with an increasing number of physicians shifting to selective and rescue drain protocol. Clinical trials with fixed protocol patterns are needed to further delineate spinal drainage best practices moving forward.

1. Novy J, Carruzzo A, Maeder P, Bogousslavsky J. Spinal cord ischemia: clinical and imaging patterns, pathogenesis, and outcomes in 27 patients. Arch Neurol. 2006;63:1113-1120. doi: 10.1001/archneur.63.8.1113

2. Cheshire WP, Santos CC, Massey EW, Howard JF Jr. Spinal cord infarction: etiology and outcome. Neurology. 1996;47:321-330. doi: 10.1212/wnl.47.2.321

3. Masson C, Pruvo JP, Meder JF, et al. Spinal cord infarction: clinical and magnetic resonance imaging findings and short term outcome. J Neurol Neurosurg Psychiatry. 2004;75:1431-1435. doi: 10.1136/jnnp.2003.031724

4. Robertson CE, Brown RD Jr, Wijdicks EF, Rabinstein AA. Recovery after spinal cord infarcts: long-term outcome in 115 patients. Neurology. 2012;78:114-121. doi: 10.1212/WNL.0b013e31823efc93

5. Jacobs MJ, Elenbaas TW, Schurink GW, et al. Assessment of spinal cord integrity during thoracoabdominal aortic aneurysm repair. Ann Thorac Surg. 2002;74:S1864-1866. doi: 10.1016/s0003-4975(02)04154-1

6. Greenberg RK, Lu Q, Roselli EE, et al. Contemporary analysis of descending thoracic and thoracoabdominal aneurysm repair: a comparison of endovascular and open techniques. Circulation. 2008;118:808-817. doi: 10.1161/CIRCULATIONAHA.108.769695

7. Coselli JS, Bozinovski J, LeMaire SA. Open surgical repair of 2286 thoracoabdominal aortic aneurysms. Ann Thorac Surg. 2007;83:S862-S864. doi: 10.1016/j.athoracsur.2006.10.088

8. Eagleton MJ, Follansbee M, Wolski K, et al. Fenestrated and branched endovascular aneurysm repair outcomes for type II and III thoracoabdominal aortic aneurysms. J Vasc Surg. 2016;63:930-942. doi: 10.1016/j.jvs.2015.10.095

9. Tanaka H, Minatoya K, Matsuda H, et al. Embolism is emerging as a major cause of spinal cord injury after descending and thoracoabdominal aortic repair with a contemporary approach: magnetic resonance findings of spinal cord injury. Interact Cardiovasc Thorac Surg. 2014;19:205-210. doi: 10.1093/icvts/ivu148

10. O’Callaghan A, Mastracci TM, Eagleton MJ. Staged endovascular repair of thoracoabdominal aortic aneurysms limits incidence and severity of spinal cord ischemia. J Vasc Surg. 2015;61:347-354.e1. doi: 10.1016/j.jvs.2014.09.011

11. Hawkins RB, Mehaffey JH, Narahari AK,et al. Improved outcomes and value in staged hybrid extent II thoracoabdominal aortic aneurysm repair. J Vasc Surg. 2017;66:1357-1363. doi: 10.1016/j.jvs.2017.03.420

12. Geisbusch S, Stefanovic A, Koruth JS, et al. Endovascular coil embolization of segmental arteries prevents paraplegia after subsequent thoracoabdominal aneurysm repair: an experimental model. J Thorac Cardiovasc Surg. 2014;147:220-226. doi: 10.1016/j.jtcvs.2013.09.022

13. Luehr M, Salameh A, Haunschild J, et al. Minimally invasive segmental artery coil embolization for preconditioning of the spinal cord collateral network before one-stage descending and thoracoabdominal aneurysm repair. Innovations (Phila). 2014;9:60-65. doi: 10.1097/IMI.0000000000000038

14. Etz CD, Debus ES, Mohr FW, Kolbel T. First-in-man endovascular preconditioning of the paraspinal collateral network by segmental artery coil embolization to prevent ischemic spinal cord injury. J Thorac Cardiovasc Surg. 2015;149:1074-1079. doi: 10.1016/j.jtcvs.2014.12.025

15. Cheung AT, Weiss SJ, McGarvey ML, et al. Interventions for reversing delayed-onset postoperative paraplegia after thoracic aortic reconstruction. Ann Thorac Surg. 2002;74:413-419. doi: 10.1016/s0003-4975(02)03714-1

16. Khoynezhad A, Donayre CE, Smith J, et al. Risk factors for early and late mortality after thoracic endovascular aortic repair. J Thorac Cardiovasc Surg. 2008;135:1103-1109, 1109.e1-4. doi: 10.1016/j.jtcvs.2008.02.001

17. Moerman A, Van Herzeele I, Vanpeteghem C, et al. Near-infrared spectroscopy for monitoring spinal cord ischemia during hybrid thoracoabdominal aortic aneurysm repair. J Endovasc Ther. 2011;18:91-95. doi: 10.1583/10-3224.1

18. Jameson LC, Sloan TB. Monitoring of the brain and spinal cord. Anesthesiol Clin. 2006;24:777-791. doi: 10.1016/j.atc.2006.08.002

19. Messé SR, Bavaria JE, Mullen M, et al. Neurologic outcomes from high risk descending thoracic and thoracoabdominal aortic operations in the era of endovascular repair. Neurocrit Care. 2008;9:344-351. doi: 10.1007/s12028-008-9104-9

20. Cambria RP, Clouse WD, Davison JK, et al. Thoracoabdominal aneurysm repair: results with 337 operations performed over a 15-year interval. Ann Surg 2002;236:471-479. doi: 10.1097/00000658-200210000-00010

21. Alqaim M, Cosar E, Crawford AS, et al. Lumbar drain complications in patients undergoing fenestrated or branched endovascular aortic aneurysm repair: Development of an institutional protocol for lumbar drain management. J Vasc Surg. 2020;S0741-5214(20)30285-8. doi: 10.1016/j.jvs.2020.02.013

22. Kärkkäinen JM, Cirillo-Penn NC, Sen I, et al. Cerebrospinal fluid drainage complications during first stage and completion fenestrated-branched endovascular aortic repair. J Vasc Surg. 2020;71:1109-1118.e2. doi: 10.1016/j.jvs.2019.06.210

23. Cheung AT, Pochettino A, Guvakov DV, et al. Safety of lumbar drains in thoracic aortic operations performed with extracorporeal circulation. Ann Thorac Surg. 2003;76:1190-1196. doi: 10.1016/s0003-4975(03)00881-6

24. Estrera AL, Sheinbaum R, Miller CC, et al. Cerebrospinal fluid drainage during thoracic aortic repair: safety and current management. Ann Thorac Surg. 2009;88:9-15. doi: 10.1016/j.athoracsur.2009.03.039

25. Ciná CS, Abouzahr L, Arena GO,et al. Cerebrospinal fluid drainage to prevent paraplegia during thoracic and thoracoabdominal aortic aneurysm surgery: a systematic review and meta-analysis. J Vasc Surg. 2004;40:36-44. doi: 10.1016/j.jvs.2004.03.017

26. Hiratzka LF, Bakris GL, Beckman JA, et al. 2010 ACCF/AHA/AATS/ACR/ASA/SCA/SCAI/SIR/STS/SVM guidelines for the diagnosis and management of patients with thoracic aortic disease: a report of the American College of Cardiology Foundation/American Heart Association task force on practice guidelines, American Association for Thoracic Surgery, American College of Radiology, American Stroke Association, Society of Cardiovascular Anesthesiologists, Society for Cardiovascular Angiography and Interventions, Society of Interventional Radiology, Society of Thoracic Surgeons, and Society for Vascular Medicine. Circulation. 2010;121:e266-369. doi: 10.1161/CIR.0000000000000331

27. Safi HJ, Miller CC 3rd, Huynh TT, et al. Distal aortic perfusion and cerebrospinal fluid drainage for thoracoabdominal and descending thoracic aortic repair: ten years of organ protection. Ann Surg. 2003;238:372-380. doi: 10.1097/01.sla.0000086664.90571.7a

28. Coselli JS, LeMaire SA, Köksoy C, et al. Cerebrospinal fluid drainage reduces paraplegia after thoracoabdominal aortic aneurysm repair: results of a randomized clinical trial. J Vasc Surg. 2002;35:631-639. doi: 10.1067/mva.2002.122024

29. Khan SN, Stansby G. Cerebrospinal fluid drainage for thoracic and thoracoabdominal aortic aneurysm surgery. Cochrane Database Syst Rev. 2012;10:CD003635. doi: 10.1002/14651858.CD003635.pub3

30. Wong CS, Healy D, Canning C, et al. A systematic review of spinal cord injury and cerebrospinal fluid drainage after thoracic aortic endografting. J Vasc Surg. 2012;56:1438-1447. doi: 10.1016/j.jvs.2012.05.075

31. Dijkstra ML, Vainas T, Zeebregts CJ, et al. Editor’s choice—spinal cord ischaemia in endovascular thoracic and thoraco-abdominal aortic repair: review of preventive strategies. Eur J Vasc Endovasc Surg. 2018;55:829-841. doi: 10.1016/j.ejvs.2018.02.002

32. Riambau V, Bockler D, Brunkwall J, et al. Editor’s choice—management of descending thoracic aorta diseases: clinical practice guidelines of the European Society for Vascular Surgery (ESVS). Eur J Vasc Endovasc Surg. 2017;53:4-52. doi: 10.1016/j.ejvs.2016.06.005

33. Erbel R, Aboyans V, Boileau C, et al. 2014 ESC guidelines on the diagnosis and treatment of aortic diseases: Document covering acute and chronic aortic diseases of the thoracic and abdominal aorta of the adult. The Task Force for the Diagnosis and Treatment of Aortic Diseases of the European Society of Cardiology (ESC). Eur Heart J. 2014;35:2873-2926. doi: 10.1093/eurheartj/ehu281

34. Anwar MA, Al Shehabi TS, Eid AH. Inflammogenesis of secondary spinal cord injury. Front Cell Neurosci. 2016;10:98. doi: 10.3389/fncel.2016.00098

Alexander S. Fairman, MD
Department of Surgery
Hospital of the University of Pennsylvania
Philadelphia, Pennsylvania
Disclosures: None.

Grace J. Wang, MD, MSCE
Division of Vascular Surgery and Endovascular Therapy
Hospital of the University of Pennsylvania
Philadelphia, Pennsylvania
Disclosures: None.
